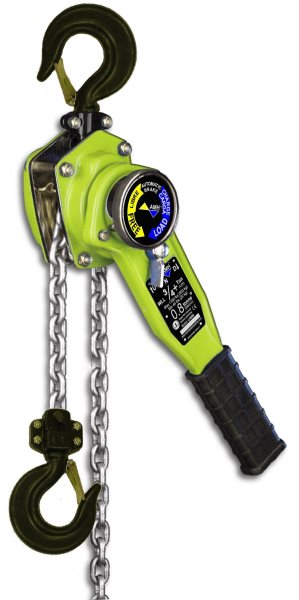

LA016-10 Lever Chain Hoist 10' lift 1.75 Ton Capacity

$475.00

All Material Handling SKU: LA016-10U

AMH LA Lever Chain Hoists

All Material Handling's quality imported LA lever chain hoist offers premium features with value pricing. All units are assembled and tested in the United States. They feature steel construction, a powder coated finish and plated external components, making the manual chain hoists corrosion resistant, lightweight and durable. The LA lever chain hoists are dual rated and are available in a variety of lift capacities. LA016-10 is the 1.75-ton capacity hoist with a 10-foot lift.

Features of the LA016-10 Lever Chain Hoist

All Material Handling’s Model #LA016-10 lever chain hoist features 1-3/4 ton capacity and 10 ft of lift. Key features of this manual chain hoist include:

  • Capacities of 3/4 ton to 10 tons with standard lifts of 5, 10, 15 and 20 ft. This model is dual rated with Metric ton capacities from .8T to 9 Metric tons.

  • Premium USA made load chain - grade 80, Zinc plated alloy.

  • Double Pawl Brake - self-adjusting double pawl disc type mechanical load brake insures position load control.

  • Horseshoe shaped chain guard allows operation in any orientation.

  • Optional Overload Protection is a one directional clutch that will only slip in the lift direction.

  • Meets industry standards including: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9.

  • Suitable in some Hazardous Environments - Contact us to discuss your NEC rated hazardous location application.

AMH Manual Chain Hoist Sales & Service

As an authorized distributor, Shupper-Brickle Equipment sells and services All Material Handling hoists, including the 1.75-ton LA016-10 lever chain hoists. Contact us for hoist sales and service or upgrades and special features that are available for the LA lever chain hoist, such as:

  • Shipyard or self-locking hook options
  • Custom chain lifts
  • Optional overload protection device

To order your 1.75 ton LA016-10 lever chain hoist, contact our experienced sales engineers through this website or call 800-642-7263.

Don't see what you need? With over 50 years in the business, we know hoists! Contact us for hoist sales, overhead cranes or comprehensive services, such as OSHA inspections and turn-key installation. We provide equipment diagnosis and repair at your Mid-Atlantic States facility or in our Clarksburg, NJ repair workshop.
